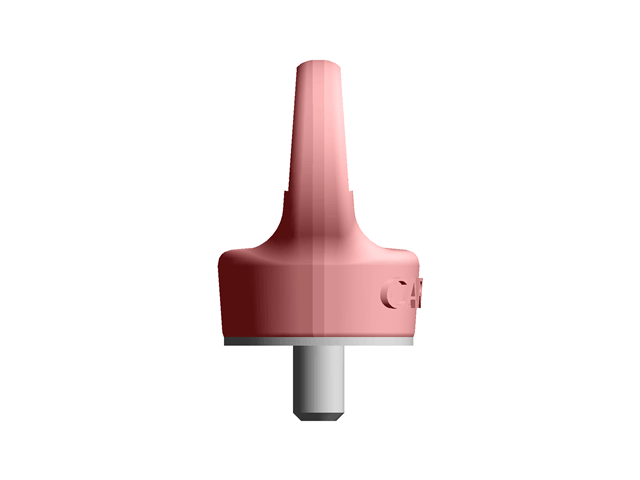

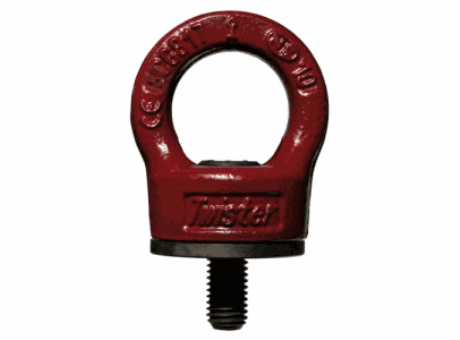

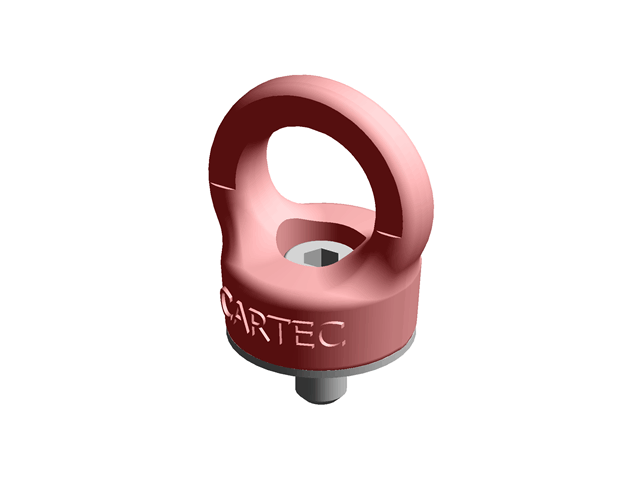

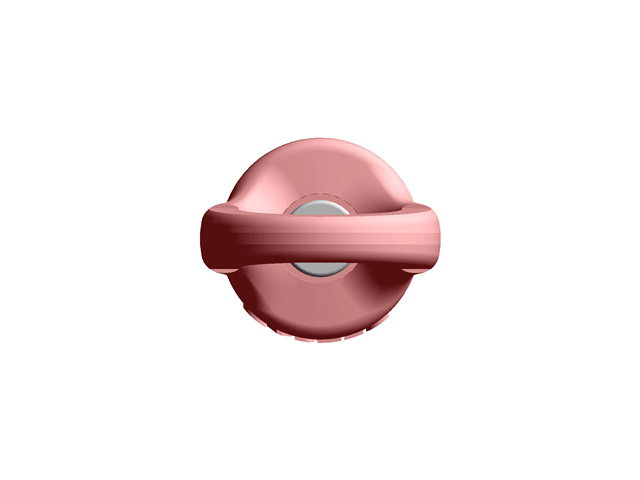

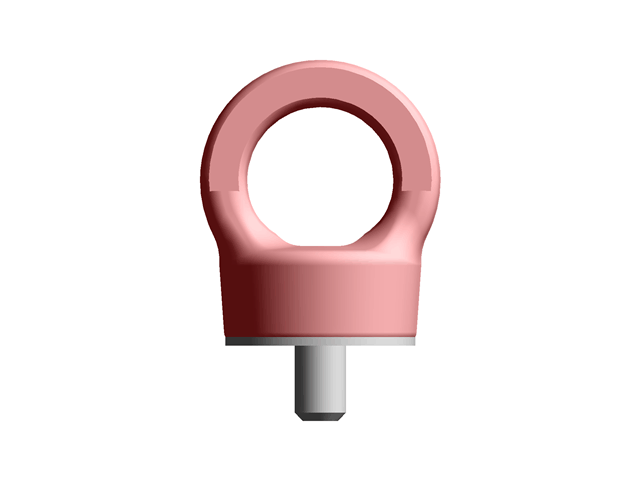

Back to Swivel/Rotating Eyebolts Eyebolt Twister With Bearing
Made in Italy

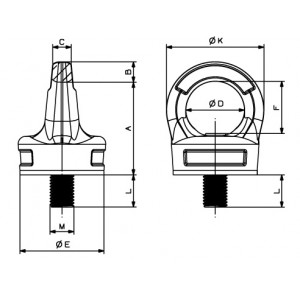

| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | K (mm) | L (mm) | Weight (Kg) | W.L.L. (t) | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C817X12 | 53,5 | 11 | 11 | 34 | 44 | 32 | 56 | 18 | 0,46 | 0,75 | M12 |
| C817X16 | 56,5 | 13 | 14,5 | 39 | 56 | 33 | 65 | 24 | 0,9 | 1,5 | M16 |
| C817X20 | 67 | 14 | 17 | 42 | 58 | 40 | 70 | 30 | 1,15 | 2,3 | M20 |
| C817X24 | 80 | 18 | 19 | 52 | 73 | 44,5 | 88 | 38,5 | 2,05 | 3,2 | M24 |
| C817X30 | 101 | 22 | 27 | 62 | 80 | 53 | 106 | 44 | 4 | 4,5 | M30 |
| C817XC12 | 53,5 | 11 | 11 | 34 | 44 | 32 | 56 | 18 | 0,46 | 0,75 | M12 |
| C817XC16 | 56,5 | 13 | 14,5 | 39 | 56 | 33 | 65 | 24 | 0,9 | 1,5 | M16 |
| C817XC20 | 67 | 14 | 17 | 42 | 58 | 40 | 70 | 30 | 1,15 | 2,3 | M20 |
| C817XC24 | 80 | 18 | 19 | 52 | 73 | 44,5 | 88 | 38,5 | 2,05 | 3,2 | M24 |
| C817XC30 | 101 | 22 | 27 | 62 | 80 | 53 | 106 | 44 | 4 | 4,5 | M30 |
