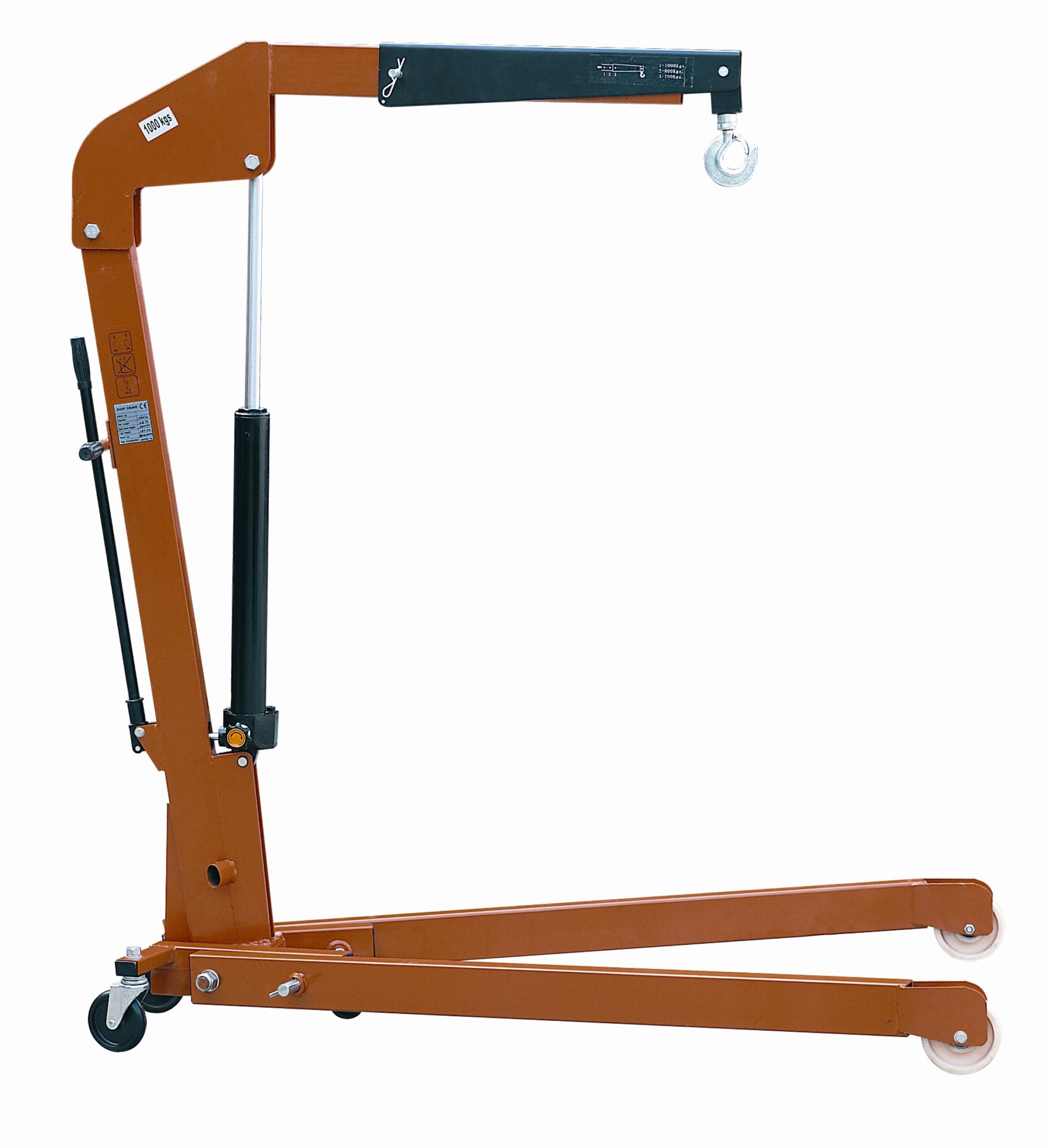

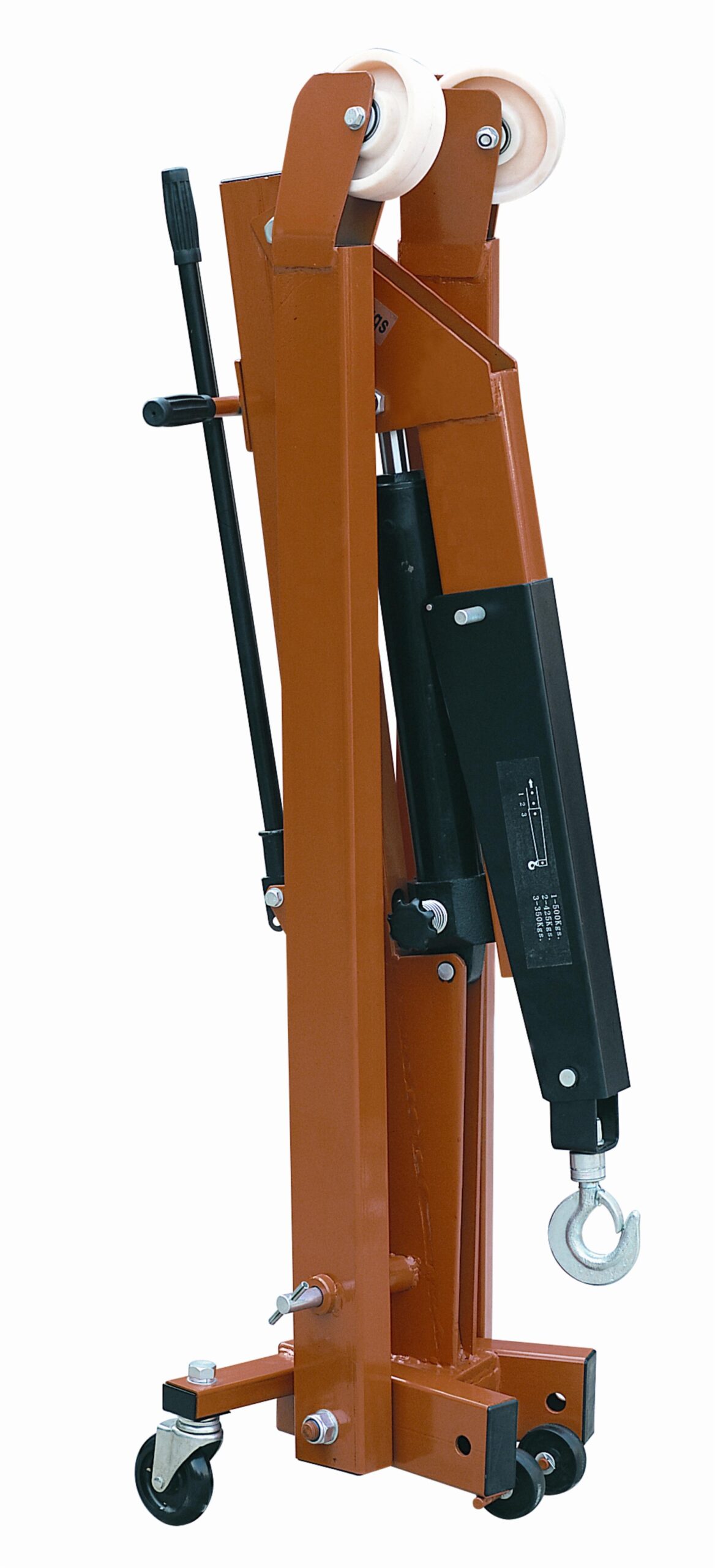

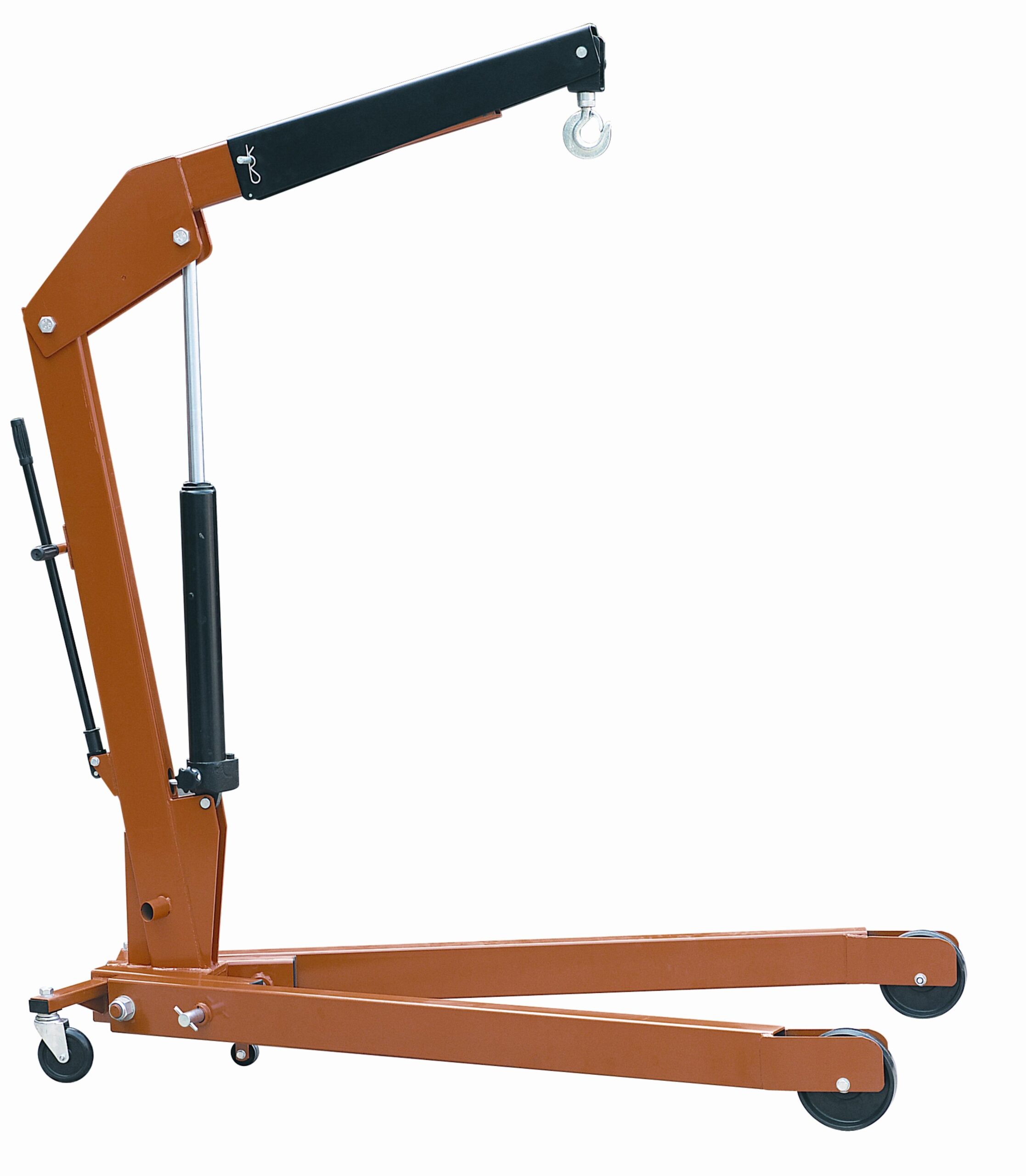

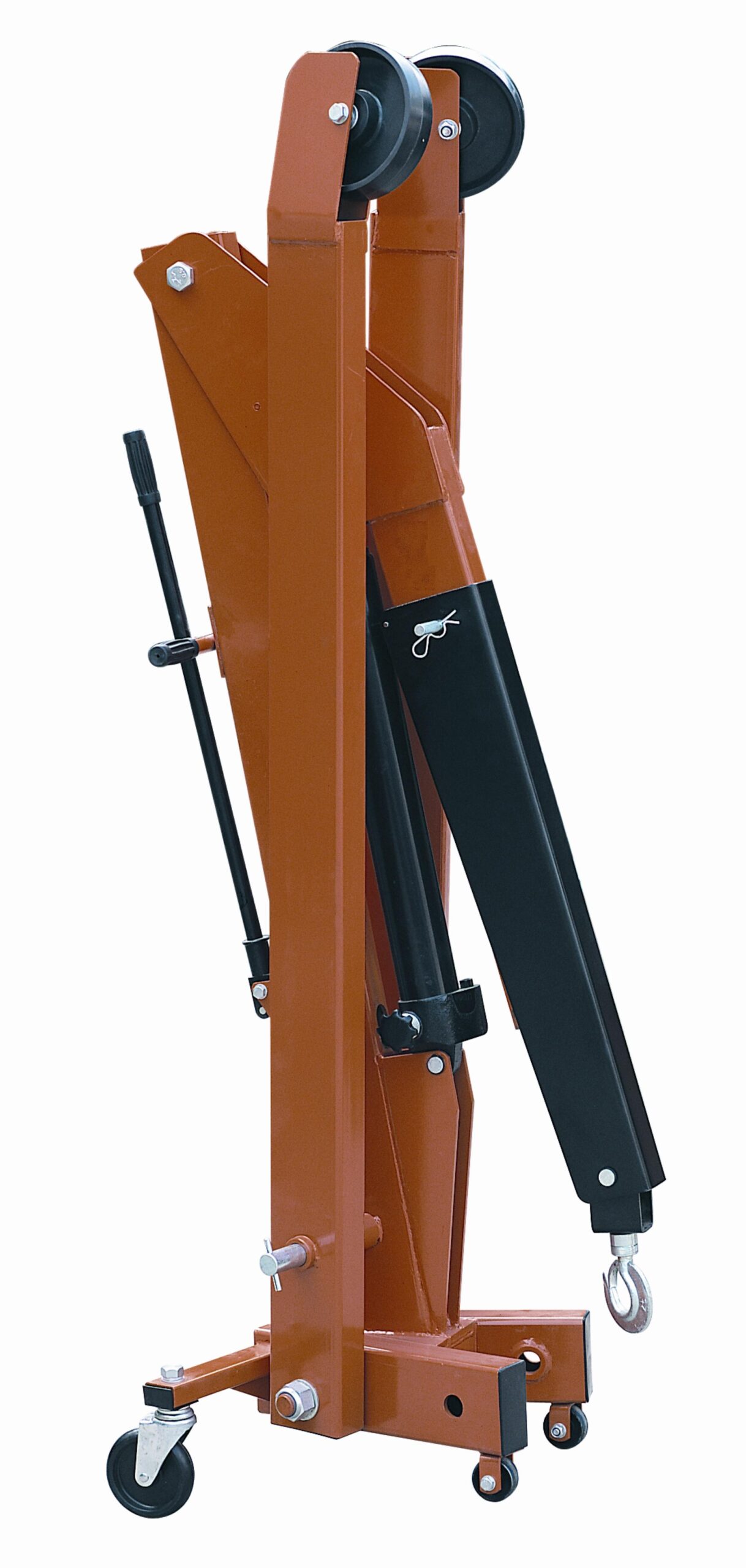

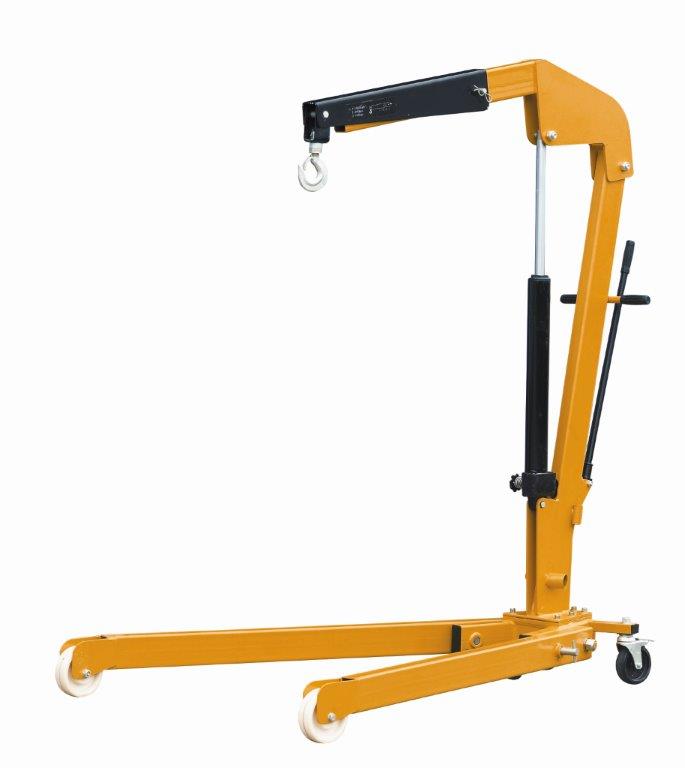

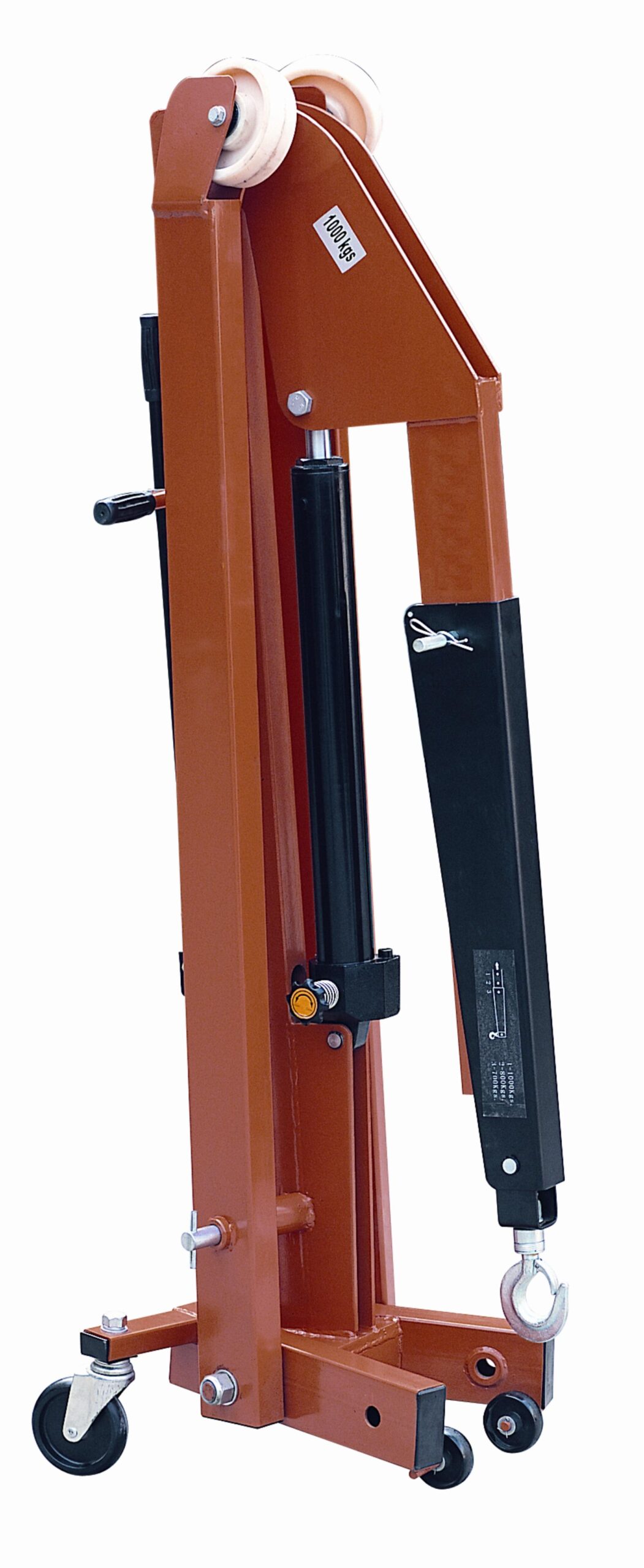

Back to Lifting Equipment, Machine Moving Foldable Shop Crane SC Series
BS EN13155

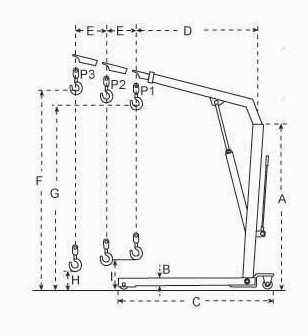

| Model | Capacity | Dimensions | Overall Width (mm) | Net Weight (KG) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1 | P2 | P3 | A | B | C | D | E | F | G | H | I | |||
| SC500A | 500 | 425 | 350 | 1410 | 165 | 1510 | 895 | 102 | 2120 | 1960 | 150 | 340 | 970 | 75 |
| SC1000A | 1000 | 800 | 700 | 1675 | 90 | 1630 | 1230 | 150 | 2445 | 2330 | - | 245 | 1120 | 115 |
| SC2000A | 2000 | 1700 | 1500 | 1690 | 205 | 1900 | 1290 | 150 | 2705 | 2505 | - | 230 | 1165 | 165 |
