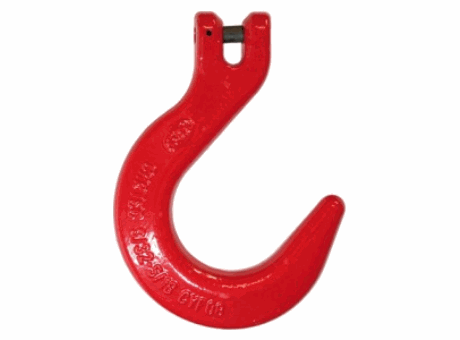

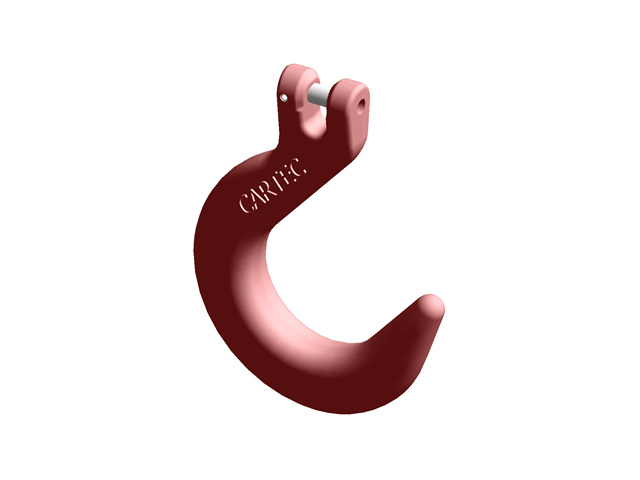

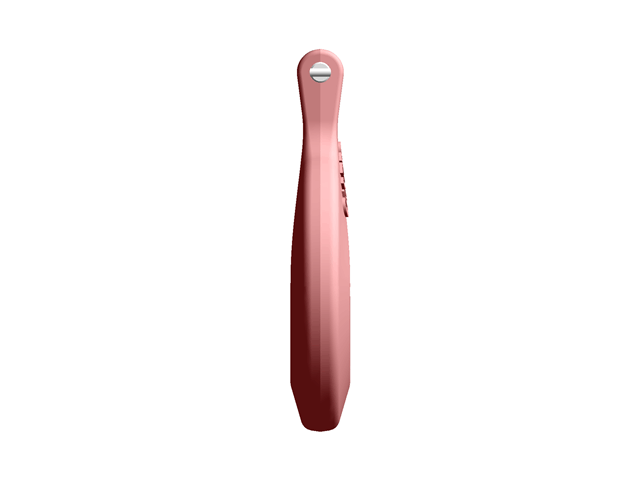

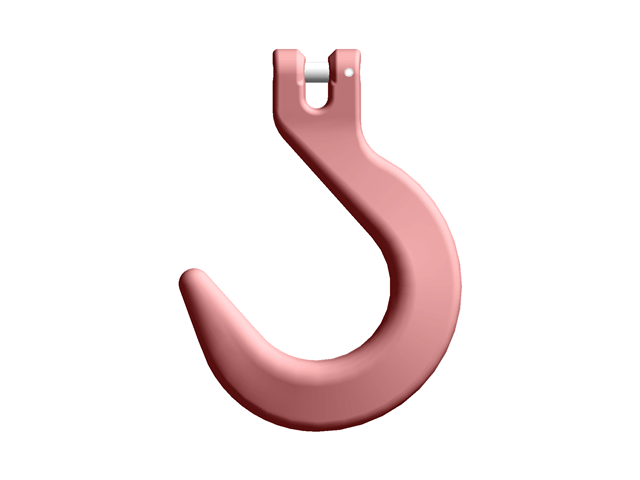

Back to Cartec G8 Foundry Clevis Hook
Made in Italy

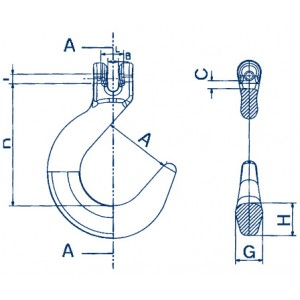

| Item Number | Chain | inch | A (mm) | B (mm) | C (mm) | G (mm) | H (mm) | R (mm) | Weight (Kg) | W.L.L. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CYF 06 | 6 | 1/4 | 53,5 | 8,5 | 6,5 | 22 | 26 | 91 | 0,7 | 1120 |
| CYF 08 | 7-8 | 9/32-5/16 | 64 | 10 | 11,5 | 26 | 31 | 120,4 | 1,1 | 2000 |
| CYF 10 | 10 | 3/8 | 76 | 13 | 15 | 30 | 34 | 131 | 1,7 | 3150 |
| CYF 13 | 13 | 1/2 | 89 | 17 | 17,5 | 40 | 44,5 | 148 | 3,6 | 5300 |
| CYF 16 | 16 | 5/8 | 101 | 19 | 21,5 | 45 | 50,5 | 198,5 | 5,6 | 8000 |
