Back to Lifting Tables & Stands, Material Handling | Model | Capacity(kg) | Size L×W(mm) | Height H(mm) | Handle Height(mm) | Wheel Dia. (mm) | Overall Size B×C(mm) | Foot Pedal to Max. Height | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|

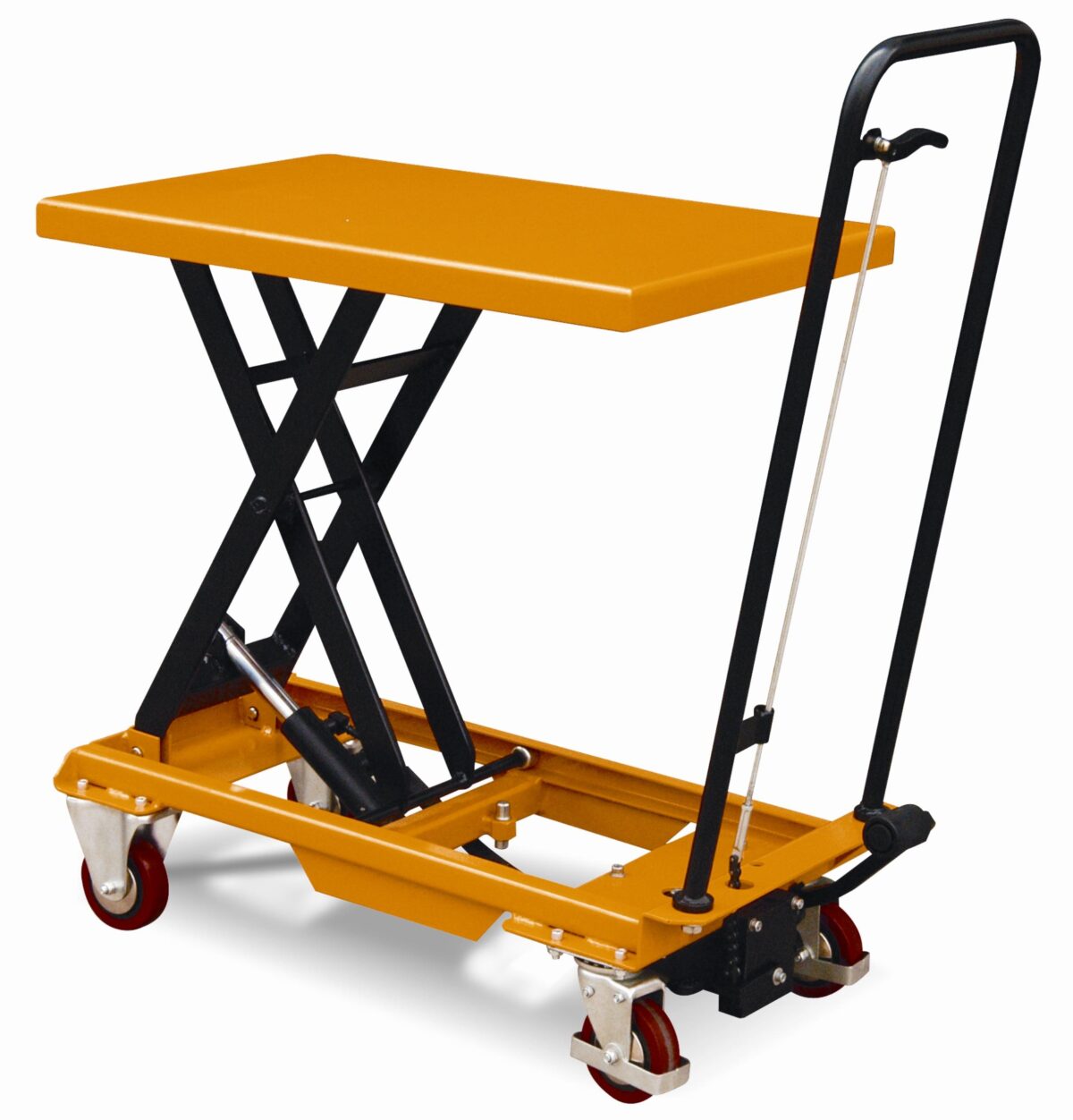

| AS20 | 200 | 700×450 | 265/755 | 980 | Φ100 | 450×870 | ≤25 | 44 |
| AS30 | 300 | 852×502 | 330/910 | 1100 | Φ125 | 502×1050 | ≤30 | 74 |
| AS50 | 500 | 852×502 | 390/910 | 1100 | Φ125 | 502×1050 | ≤40 | 81 |
| AS80 | 800 | 920×520 | 442/1000 | 1130 | Φ150 | 520×1170 | ≤70 | 114 |

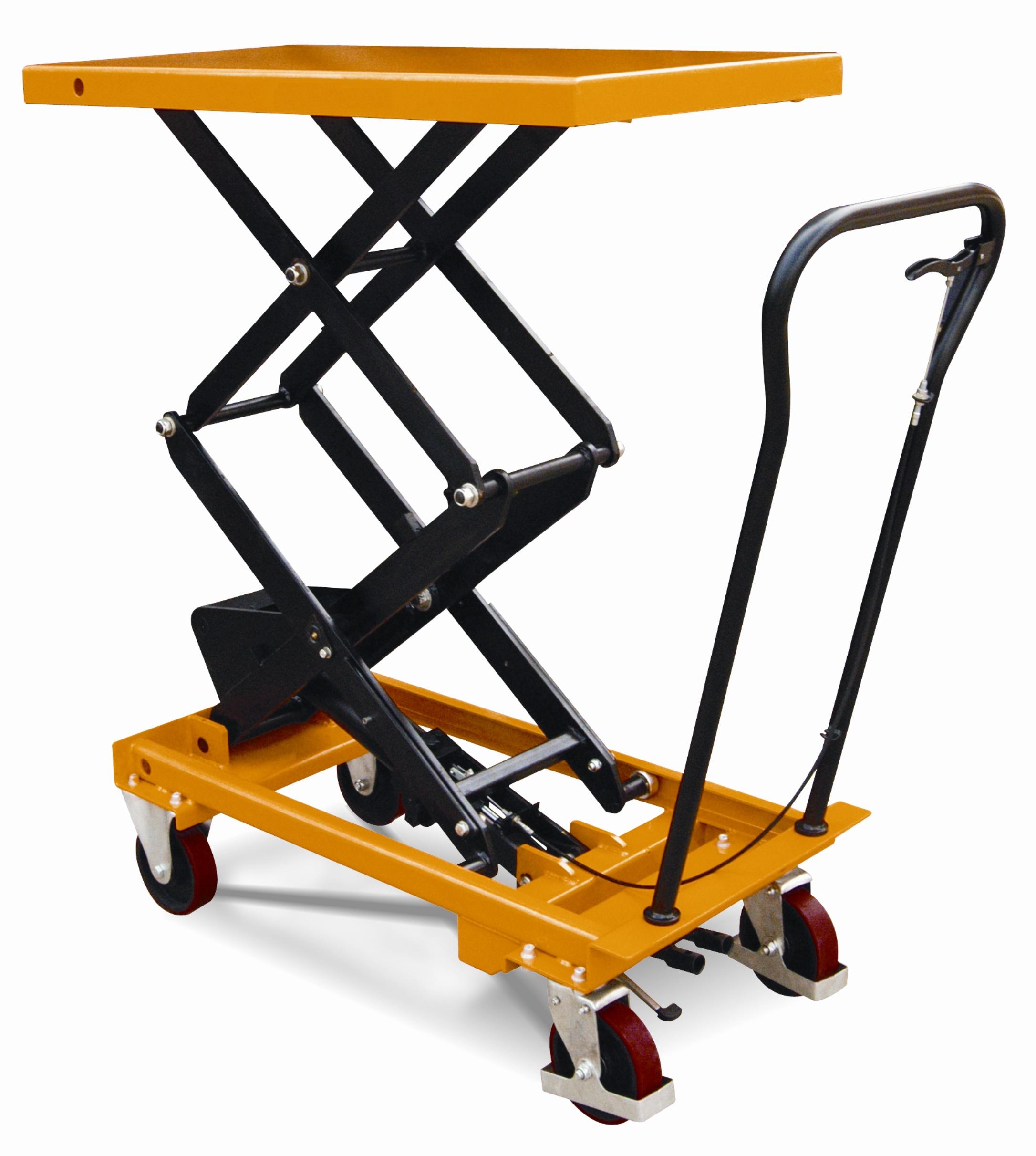

| AS35D | 350 | 920×520 | 435/1500 | 1130 | Φ150 | 520×1170 | ≤70 | 125 |
