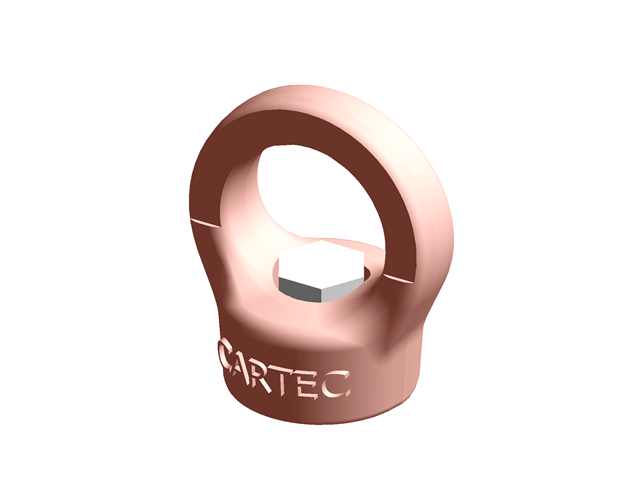

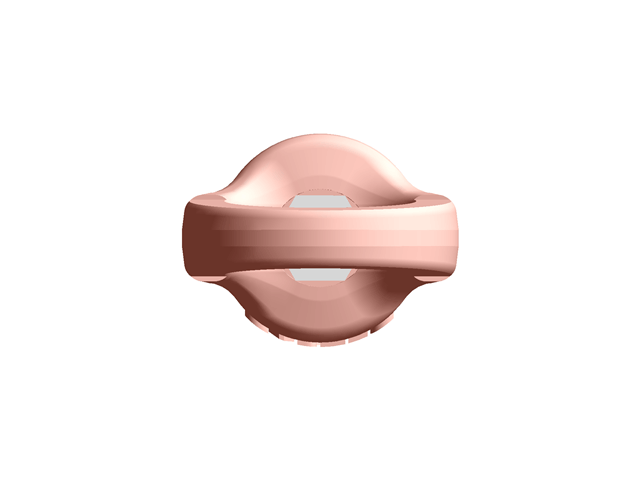

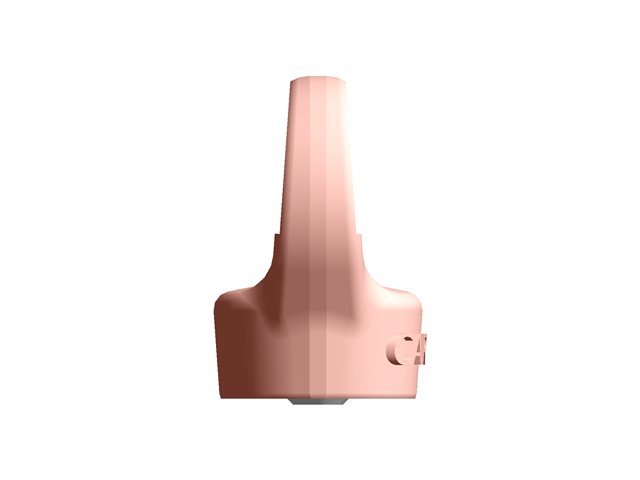

Back to Swivel/Rotating Eyebolts Rotating Eyebolt H.Q.E.
Made in Italy

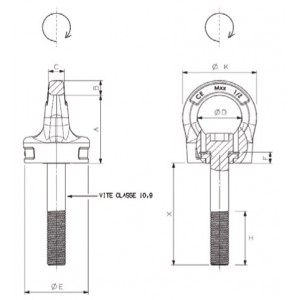

| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | K (mm) | W.L.L. (t) | Size |
|---|---|---|---|---|---|---|---|---|---|
| C810X08 | 44,5 | 8 | 10 | 29 | 32 | 10,5 | 45 | 0,3 | M8 |
| C810X10 | 44,5 | 8 | 10 | 29 | 32 | 6,5 | 45 | 0,4 | M10 |
| C810X12 | 53,5 | 11 | 11 | 34 | 44 | 8 | 56 | 0,75 | M12 |
| C810X16 | 59,5 | 13 | 14,5 | 39 | 56 | 8,5 | 65 | 1,5 | M16 |
| C810X20 | 67 | 14 | 17 | 42 | 58 | 10,5 | 70 | 2,3 | M20 |
| C810X24 | 80 | 18 | 19 | 52 | 73 | 13,5 | 88 | 3,2 | M24 |
| C810X30 | 101 | 22 | 27 | 62 | 80 | 17 | 106 | 4,5 | M30 |
