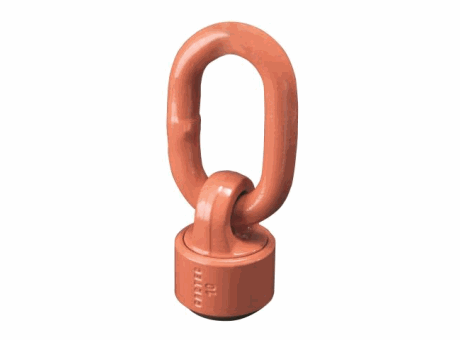

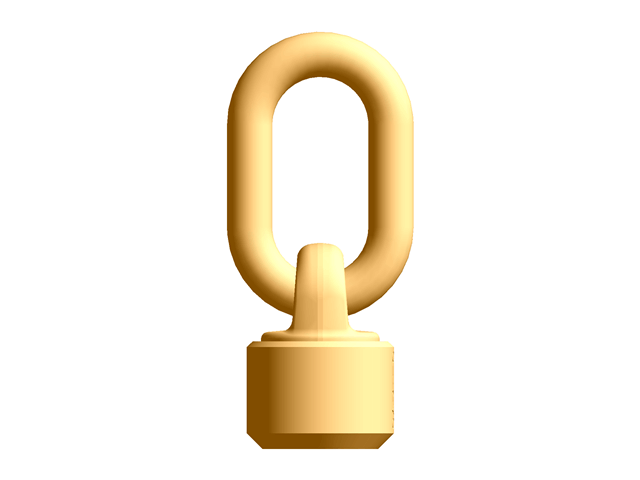

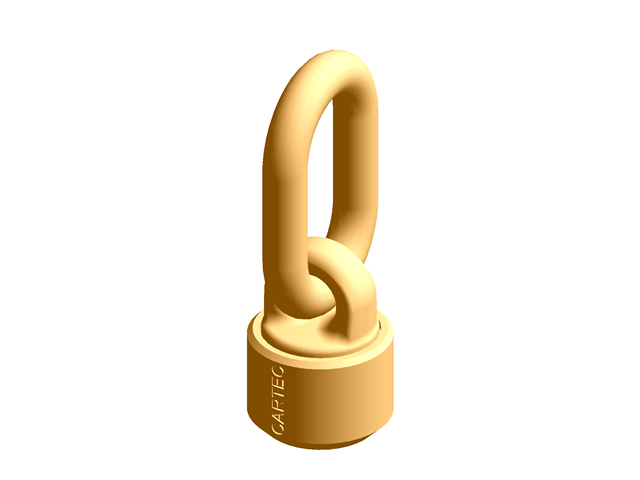

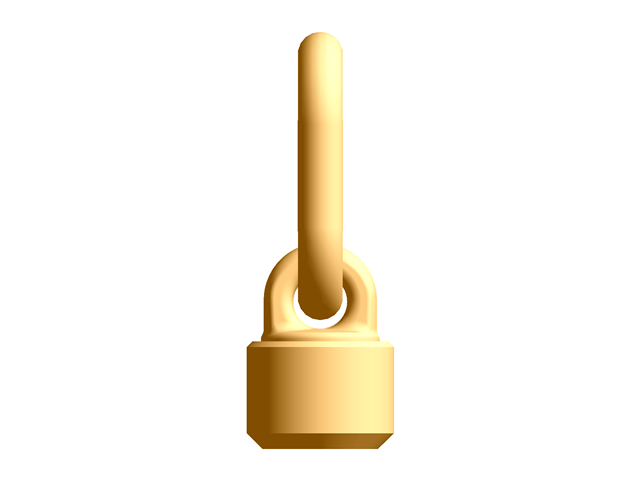

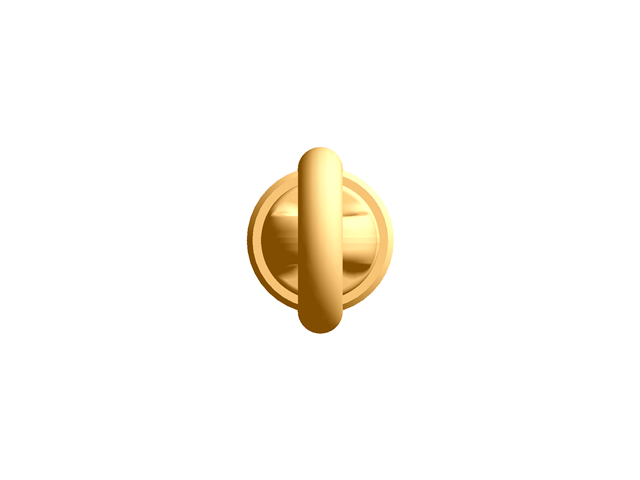

Back to Swivel/Rotating Eyebolts Rotating Eyebolt Weld-on Type With Ring
Made in Italy
| Item Number | A (mm) | B (mm) | C (mm) | D1 (mm) | E (mm) | H (mm) | S x 45° (mm) | Weight (Kg) | W.L.L. (t) |
|---|---|---|---|---|---|---|---|---|---|
| C815X010 | 50 | 23 | 92 | 85 | 86 | 201 | 10 | 2,5 | 10 |
| C815X017 | 70 | 32 | 120 | 110 | 105 | 255 | 12 | 3,2 | 17 |
| C815X025 | 34 | 16 | 58 | 52 | 61 | 131 | 5,5 | 0,48 | 2,5 |
| C815X040 | 40 | 18 | 72 | 58 | 67 | 152 | 7 | 0,85 | 4 |
| C815X067 | 45 | 22 | 65 | 75 | 73 | 158 | 8,5 | 1,12 | 6,7 |
