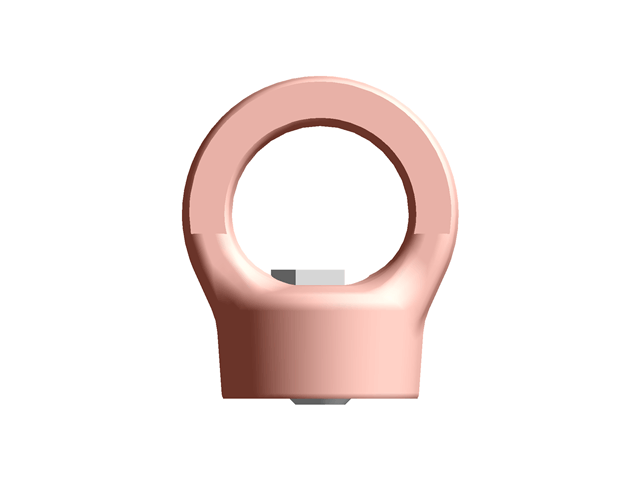

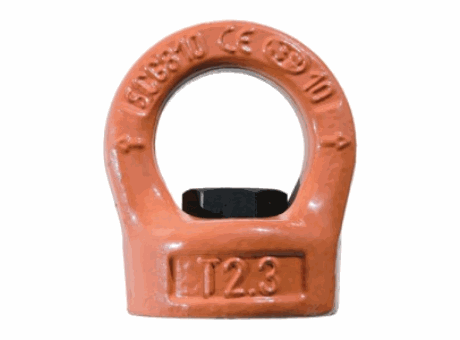

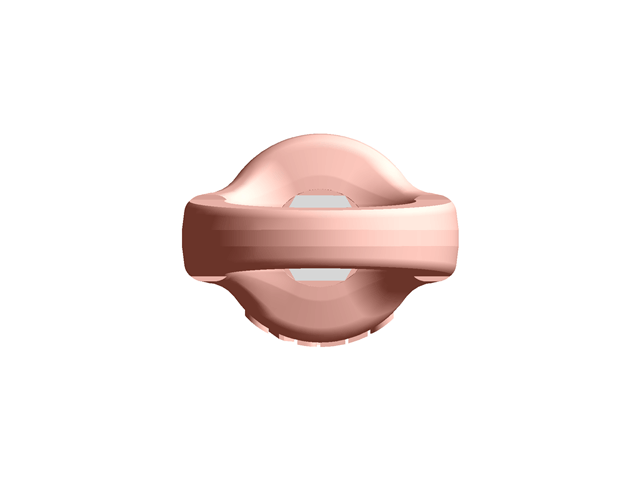

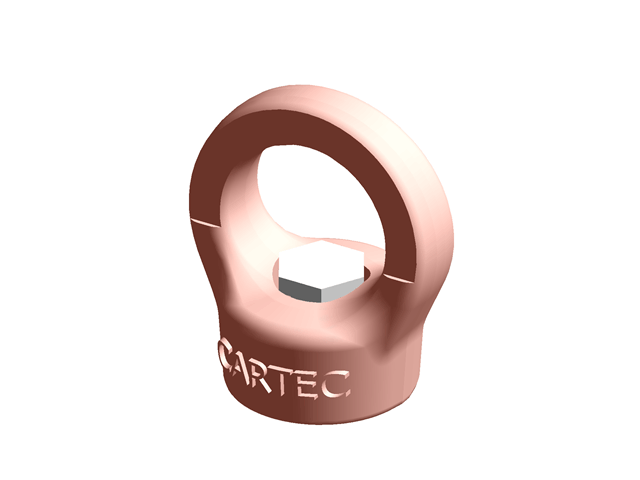

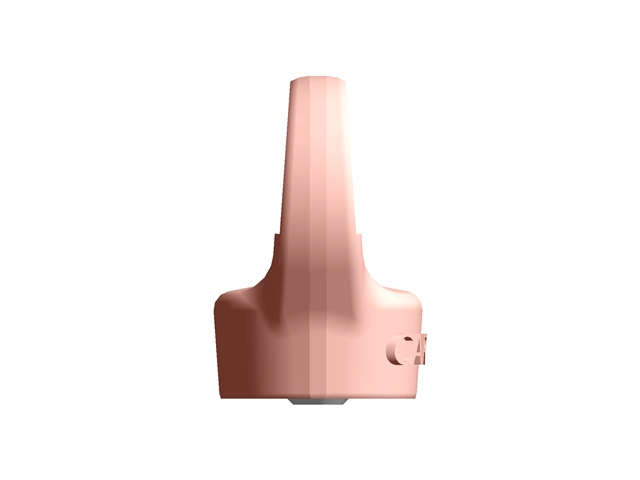

Back to Swivel/Rotating Eyebolts Rotating Female Eyebolt H.Q.E
Made in Italy
| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | K (mm) | L (mm) | Ch (mm) | Weight (Kg) | W.L.L. (t) | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C810FX08 | 44,5 | 8 | 10 | 29 | 32 | 21,5 | 45 | 23 | 13 | 0,17 | 0,3 | M8 |
| C810FX10 | 44,5 | 8 | 10 | 29 | 32 | 21,5 | 45 | 23 | 14 | 0,2 | 0,4 | M10 |
| C810FX12 | 53,5 | 11 | 11 | 34 | 44 | 26,5 | 56 | 27 | 16 | 0,39 | 0,75 | M12 |
| C810FX16 | 59,5 | 13 | 14,5 | 39 | 56 | 30,5 | 65 | 29 | 21 | 0,69 | 1,5 | M16 |
| C810FX20 | 67 | 14 | 17 | 42 | 58 | 33 | 70 | 34 | 26 | 0,71 | 2,3 | M20 |
| C810FX24 | 80 | 18 | 19 | 52 | 73 | 40 | 88 | 40 | 30 | 1,7 | 3,2 | M24 |
| C810FX30 | 101 | 22 | 27 | 62 | 80 | 51 | 106 | 50 | 36 | 2,44 | 4,5 | M30 |
