Swivel/Rotating Eyebolts

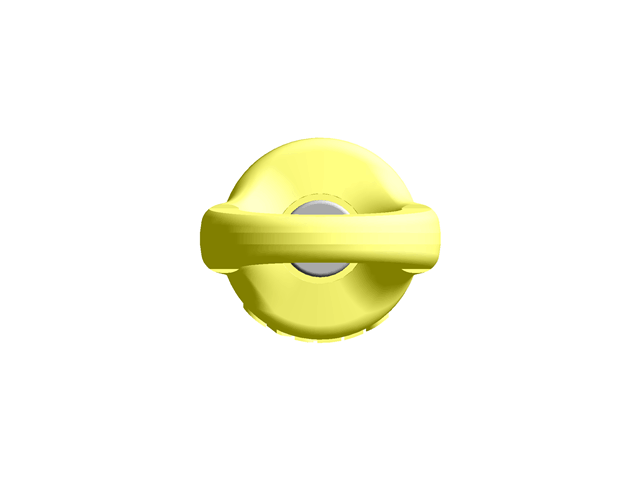

Rotating Restraining Device (PPE) EN795
Made in Italy

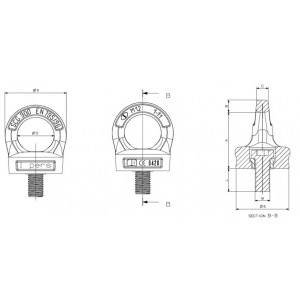

| Item Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | K (mm) | L (mm) | Weight (Kg) | Size | Capacity LC (t) | Max tightening couple |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C900X12 | 53,5 | 11 | 11 | 34 | 44 | 56 | 18 | 0,46 | M12 | 1 persona | 28 Nm |
| C900X16 | 59,5 | 13 | 14,5 | 39 | 56 | 65 | 24 | 0,9 | M16 | 1/2 persone | 70 Nm |
| C900X20 | 67,7 | 14 | 17 | 42 | 58 | 70 | 30 | 1,15 | M20 | 1/2 persone | 115 Nm |
