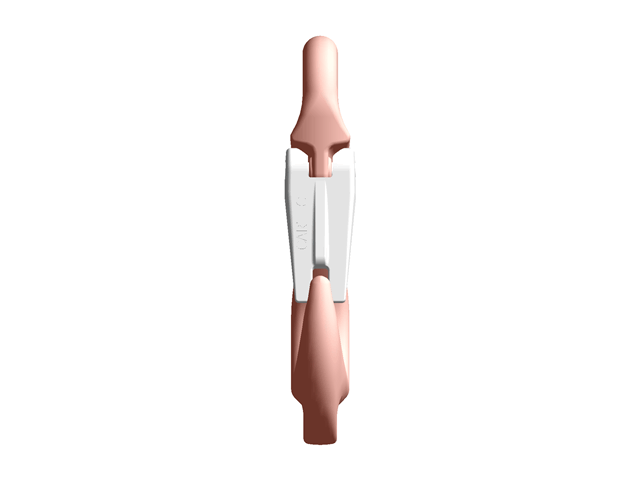

Back to Cartec G10 Sling Hook With Latch
Made in Italy

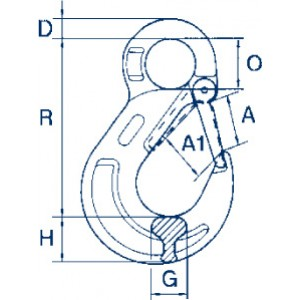

| Item Number | Chain | Inch | A(mm) | A1(mm) | D(mm) | G(mm) | H(mm) | O(mm) | R(mm) | Weight (kg) | W.L.L (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CAX 06SF | 5-6 | 7/32-1/4 | 26 | 19 | 10 | 16 | 20 | 20,5 | 81 | 0,25 | 1400 |
| CAX 08SF | 7-8 | 9/32-5/16 | 33 | 26 | 11 | 19 | 29 | 25 | 101 | 0,5 | 2500 |
| CAX 10SF | 10 | 3/8 | 40 | 31 | 16 | 26 | 33 | 34 | 131 | 0,97 | 4000 |
| CAX 13SF | 13 | 1/2 | 51 | 40 | 19 | 33 | 42 | 43 | 159 | 1,9 | 6700 |
| CAX 16SF | 16 | 5/8 | 56 | 45 | 24,5 | 40 | 50 | 50 | 183 | 3,3 | 10000 |
| CAX 20SF | 20 | 3/4 | 60 | 52 | 27 | 48 | 53 | 55 | 203 | 4,5 | 16000 |
| CAX 22SF | 22 | 7/8 | 70 | 62 | 29 | 50 | 60 | 60 | 224 | 7,1 | 19000 |
| CAX 26SF | 26 | 1 | 77 | 73 | 35 | 60 | 75 | 70 | 257 | 12 | 26500 |
| CAX 32SF | 32 | 1,25 | 102 | 97 | 42 | 73 | 91 | 84 | 335 | 27 | 40000 |
