BS ISO 2328
BS ISO 2328| Model | TLB01 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

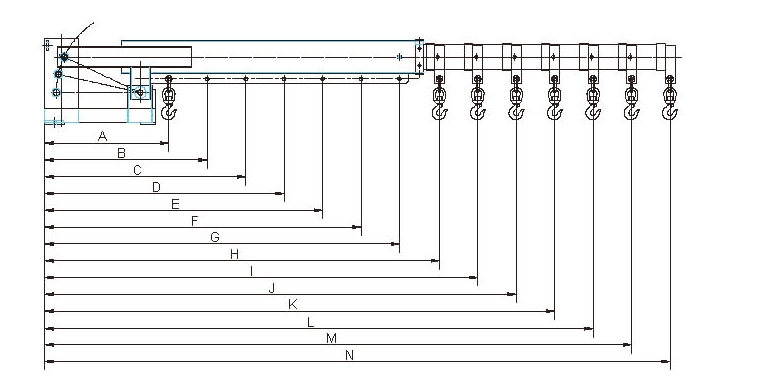

| Positions | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| Length (mm) Position (inch) | 740 29 | 969 38 | 1198 47 | 1427 56 | 1656 65 | 1885 74 | 2114 83 | 2352 93 | 2581 102 | 2810 111 | 3039 120 | 3268 129 | 3497 138 | 3726 147 |
| Capacity (kg) (Ibs) | 3000 6600 | 2291 5040 | 1853 4077 | 1556 3423 | 1341 2950 | 1178 2592 | 1050 2310 | 944 2077 | 860 1892 | 790 1738 | 730 1606 | 679 1494 | 635 1397 | 596 1311 |
