Vertical Plate Clamp CL Series

The TTC Vertical Hinged Lifting Clamp is suitable for the lifting, turning (180) and vertical transfer of steel plates and constructions.
It is fitted with a locking device.
Fitted with a hinged hoisting eye moving in all directions so as to enable the user to place and lift the load from any direction.
The lifting clamps are fitted with special hook-up facilities to enable easy fitment of the clamp in horizontal position.
The new models have a greater jaw aperture enabling plates of varying thickness to be lifted with the same clamp

Product Specification

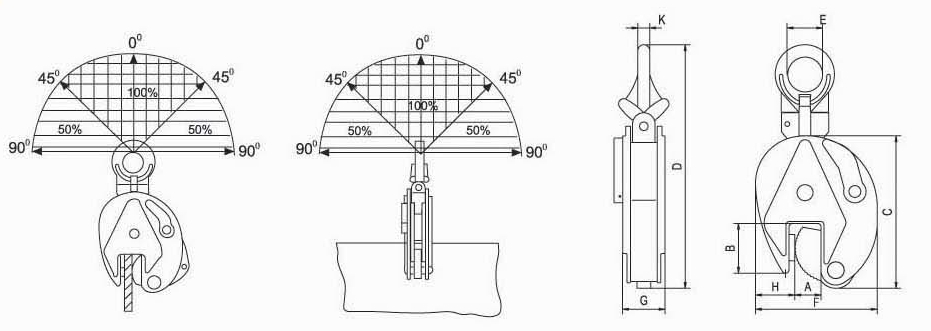

Model	Rated Capacity	Test Load (KN)	Jaw Opening (mm)	Dimensions A(mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	K (mm)	Net Weight (kg)

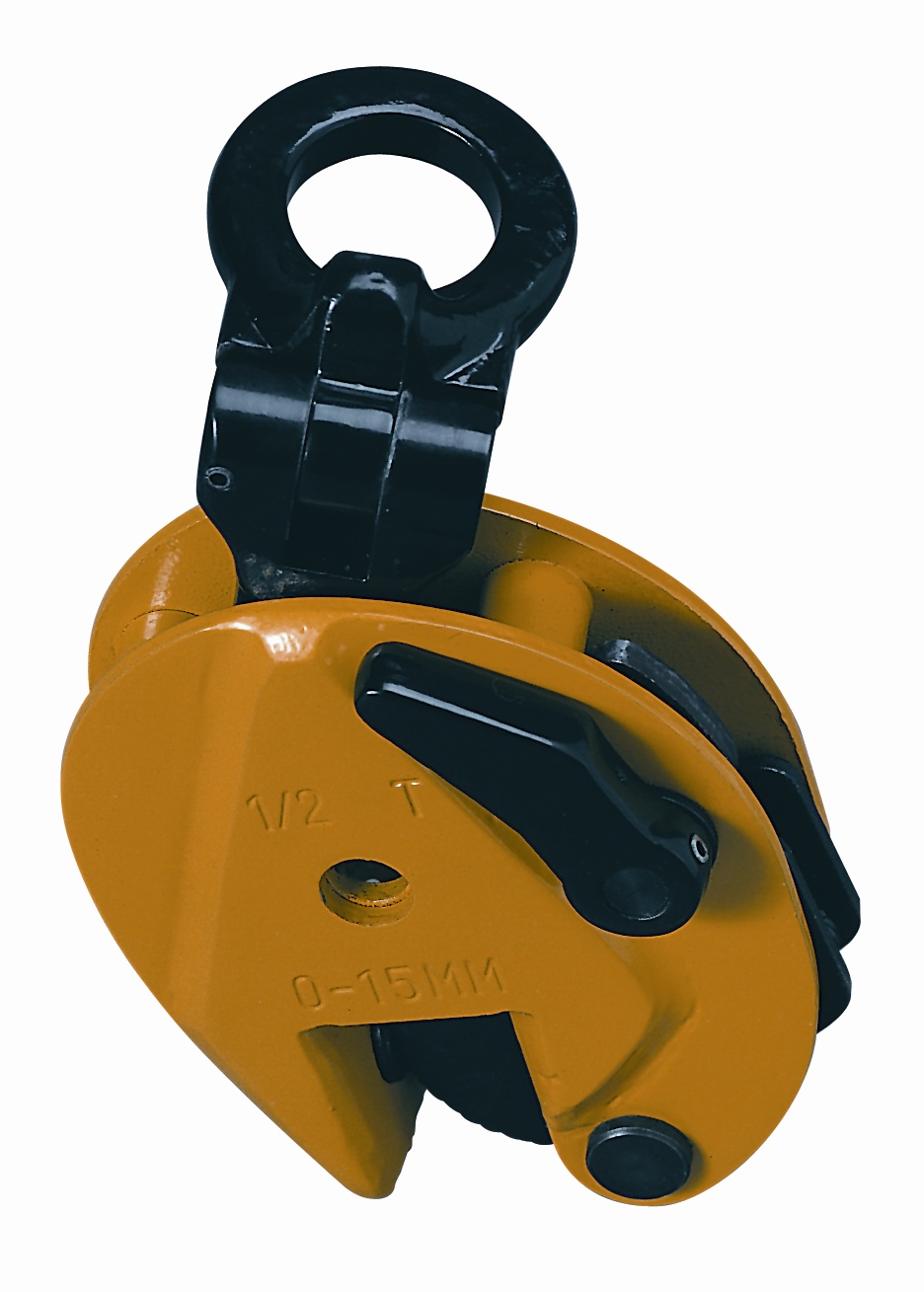

CL05	500	7.35	0-15	0-17	44	128	212	30	103	36	35	10	1.9
CL10	1000	14.7	0-20	0-22	63	167	295	48	138	50	51	12	4.8

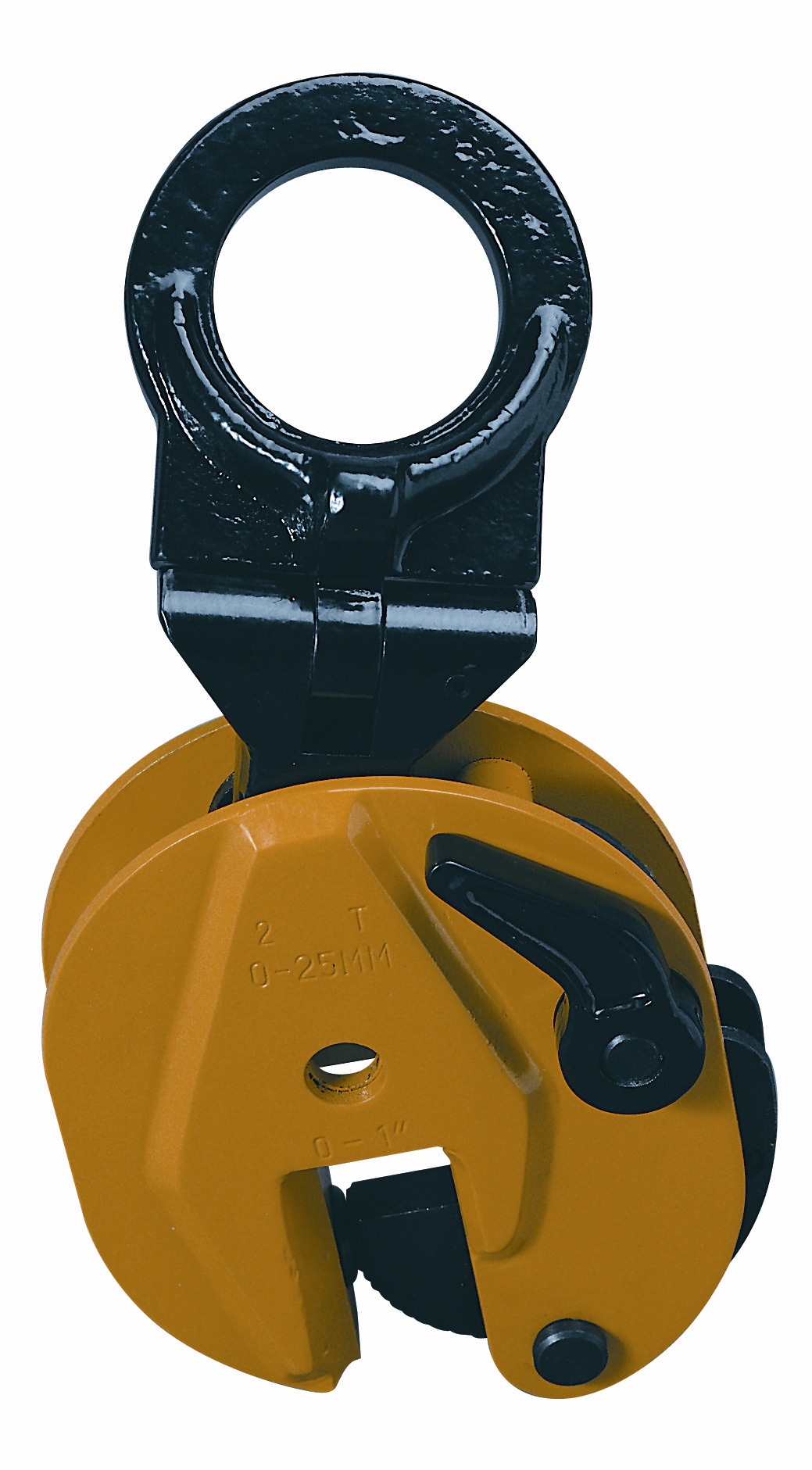

CL20	2000	29.4	0-25	0-27	76	202	370	70	164	52	56	16	6.5
CL30	3000	44.1	0-30	0-32	85	237	418	75	193	78	59	20	15
