Back to Lifting Equipment, Lifting Gear WIRE ROPE HOISTS Medium Duty – GP Series
BS EN14492-2
The puller is operable in the vertical , horizontal and diagonal planes , with a safe working load of 800, 1600 or 3200kg.• Accurate operation• Virtually maintenance-free.• Body made of high-strength cast aluminium with low own weight.• Shearing pin breaks at 25% overload and operating lever bends at an overload of approximately 50%• Shearing pin can be replaced under full load.• Spare shearing pins are located in the transport handle or in the operating lever (GP-0.8)
| Type | WLL (Vertical) (kg) | Hand Effort Max. (kg) | Lever Length (mm) | Wire Rope Dia. (mm) | Lifting Height at 1 Movement of Lever (mm) | Weight without Rope (kg) | Weight 20m Rope (kg) |
|---|---|---|---|---|---|---|---|
| GP-0.8 | 800 | 32 | 740 | 8.3 | 52 | 6.4 | 7 |
| GP-1.6 | 1600 | 42 | 1120 | 11 | 55 | 12.4 | 11.5 |
| GP-3.2 | 3200 | 44 | 1120 | 16 | 28 | 23.3 | 23 |

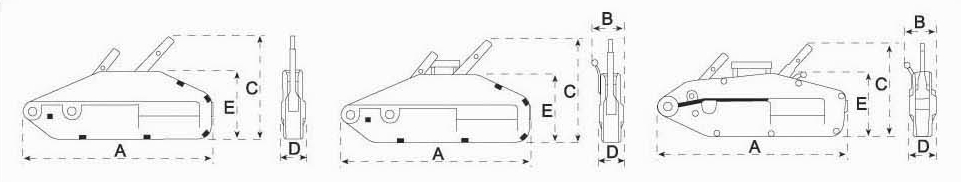

| Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| GP-0.8 | 426 | 64 | 235 | 59 | 170 |
| GP-1.6 | 545 | 97 | 280 | 72 | 190 |
| GP-3.2 | 660 | 116 | 325 | 94 | 220 |
