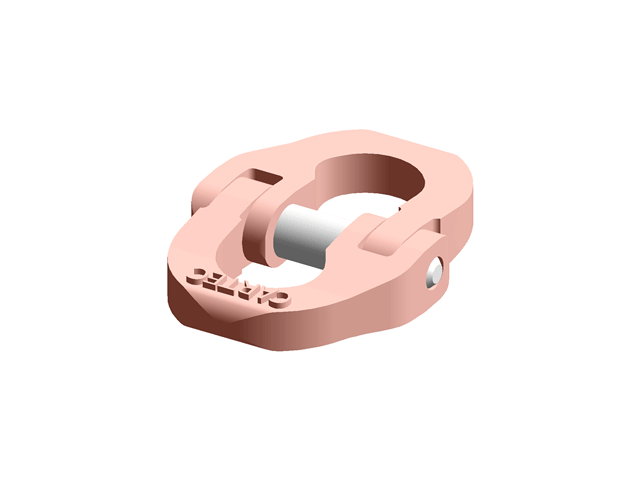

Back to Cartec G10 Cartec Connecting Link
Made in Italy
| Item Number | Chain | Inch | A (mm) | C (mm) | O (mm) | R (mm) | Weight (kg) | W.L.L. (kg) |
|---|---|---|---|---|---|---|---|---|
| CLX 06 | 6 | 1/4 | 14 | 18 | 18 | 45 | 0,07 | 1400 |
| CLX 07 | 7 | 9/32 | 17,8 | 20 | 20,5 | 50,5 | 0,14 | 1900 |
| CLX 08 | 8 | 5/16 | 19 | 25,5 | 23,5 | 62 | 0,2 | 2500 |
| CLX 10 | 10 | 3/8 | 23,8 | 30 | 27,5 | 72 | 0,35 | 4000 |
| CLX 13 | 13 | 1/2 | 28 | 36 | 33,3 | 87,3 | 0,74 | 6700 |
| CLX 16 | 16 | 5/8 | 34,3 | 40,5 | 39,5 | 105 | 1,16 | 10000 |
| CLX 20 | 20 | 3/4 | 42 | 46 | 46 | 113 | 2,5 | 16000 |
| CLX 22 | 22 | 7/8 | 49 | 55 | 58 | 133 | 3,1 | 19000 |
| CLX 26 | 26 | 1 | 57 | 85 | 70 | 192 | 6,8 | 26500 |
