Back to Swivel/Rotating Eyebolts Eye Nut 8.8
Made in Italy

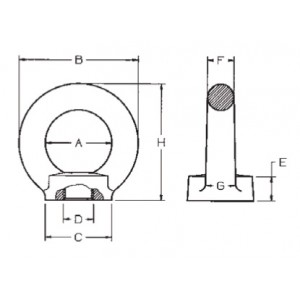

| Item Number | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | Weight (Kg) | Size |
|---|---|---|---|---|---|---|---|---|
| C80206 | 25 | 45 | 25 | 10 | 10 | 45 | 0,1 | M6 |
| C80208 | 25 | 45 | 25 | 10 | 10 | 45 | 0,1 | M8 |
| C80210 | 25 | 45 | 25 | 10 | 10 | 45 | 0,1 | M10 |
| C80212 | 35 | 63 | 35 | 14 | 14 | 62 | 0,26 | M12 |
| C80214 | 35 | 63 | 35 | 14 | 14 | 62 | 0,26 | M14 |
| C80216 | 35 | 63 | 35 | 14 | 14 | 62 | 0,26 | M16 |
| C80218 | 50 | 90 | 50 | 20 | 20 | 90 | 0,75 | M18 |
| C80220 | 50 | 90 | 50 | 20 | 20 | 90 | 0,75 | M20 |
| C80224 | 50 | 90 | 50 | 20 | 20 | 90 | 0,75 | M24 |
| C80227 | 60 | 108 | 65 | 24 | 24 | 90 | 0,75 | M27 |
| C80230 | 60 | 108 | 65 | 24 | 24 | 109 | 1,4 | M30 |
