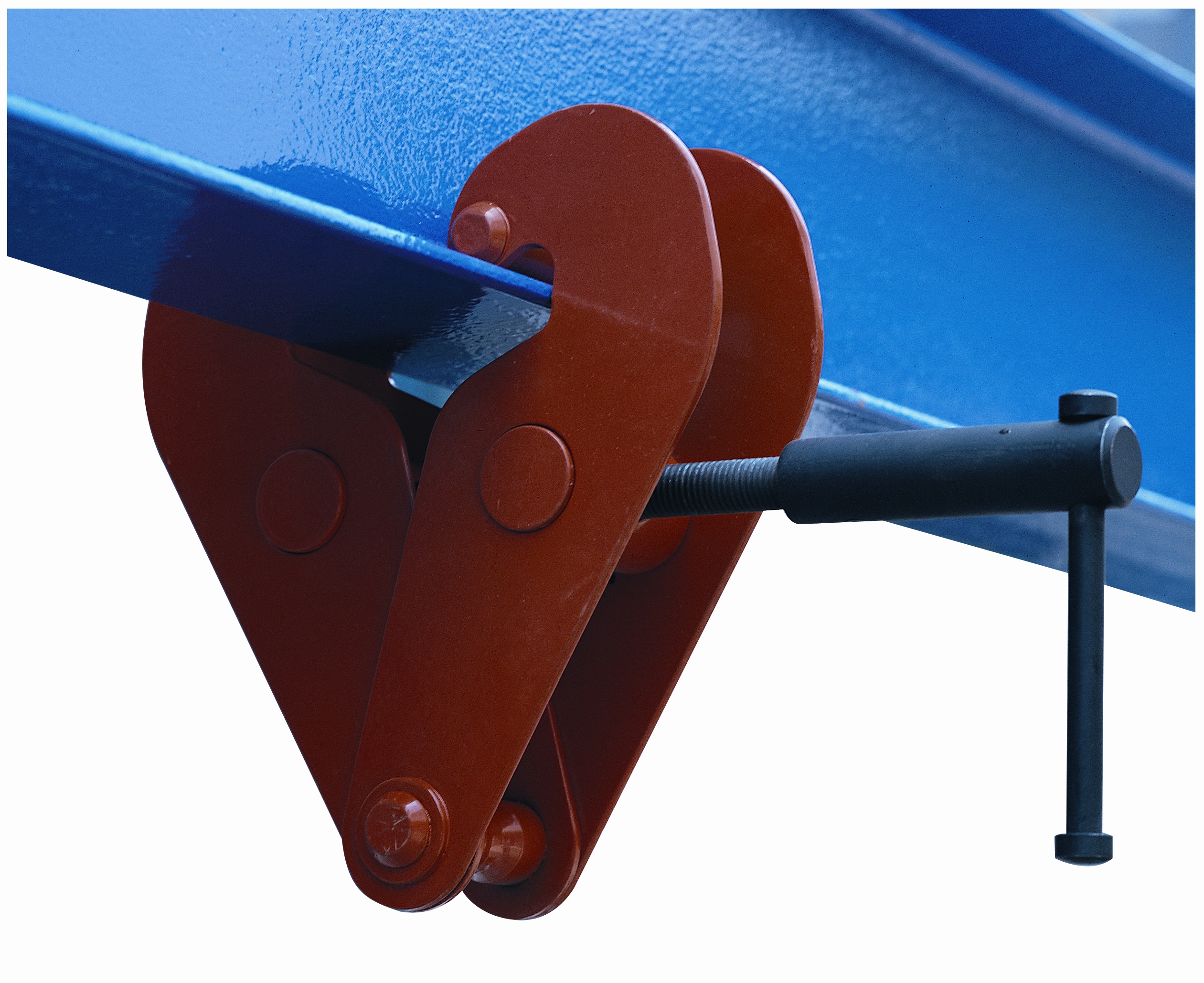

Back to Lifting Equipment, Lifting Gear Fixed Beam Clamps HBC Series
BS EN13155
| Model | Capacity (kg) | Beam Flange Width (mm) | Amin (mm) | Amax (mm) | B1 (mm) | B2 (mm) | A1 (mm) | A2 (mm) | b1 (mm) | b2 (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BC10 | 1000 | 75-230 | 116 | 151 | 78 | 247 | 186 | 350 | 75 | 230 | 50 | 4 | 215 |
| BC20 | 2000 | 75-230 | 116 | 151 | 78 | 247 | 186 | 350 | 75 | 230 | 50 | 6 | 215 |
| BC30 | 3000 | 80-322 | 180 | 225 | 80 | 322 | 232 | 455 | 80 | 322 | 70 | 8 | 255 |
| BC50 | 5000 | 90-322 | 180 | 225 | 90 | 322 | 242 | 455 | 90 | 312 | 70 | 10 | 255 |
| BC100 | 10000 | 90-322 | 176 | 221 | 176 | 322 | 268 | 480 | 90 | 322 | 70 | 12 | 275 |
| Model | F1 (mm) | F2 (mm) | G1 (mm) | G2 (mm) | H (mm) | J1 (mm) | J2 (mm) | K1 (mm) | K2 (mm) | L (mm) | Net Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BC10 | 34 | 17 | 83 | 45 | 20 | 14 | 21 | 48 | 31 | 84 | 3.9 |
| BC20 | 35 | 18 | 83 | 45 | 20 | 14 | 21 | 50 | 32 | 94 | 4.7 |
| BC30 | 35 | 21 | 121 | 76 | 22 | 30 | 34 | 60 | 40 | 122 | 9.2 |
| BC50 | 35 | 21 | 117 | 76 | 28 | 30 | 34 | 60 | 42 | 129 | 11 |
| BC100 | 35 | 20 | 111 | 67 | 38 | 34 | 35 | 60 | 40 | 146 | 17.5 |
