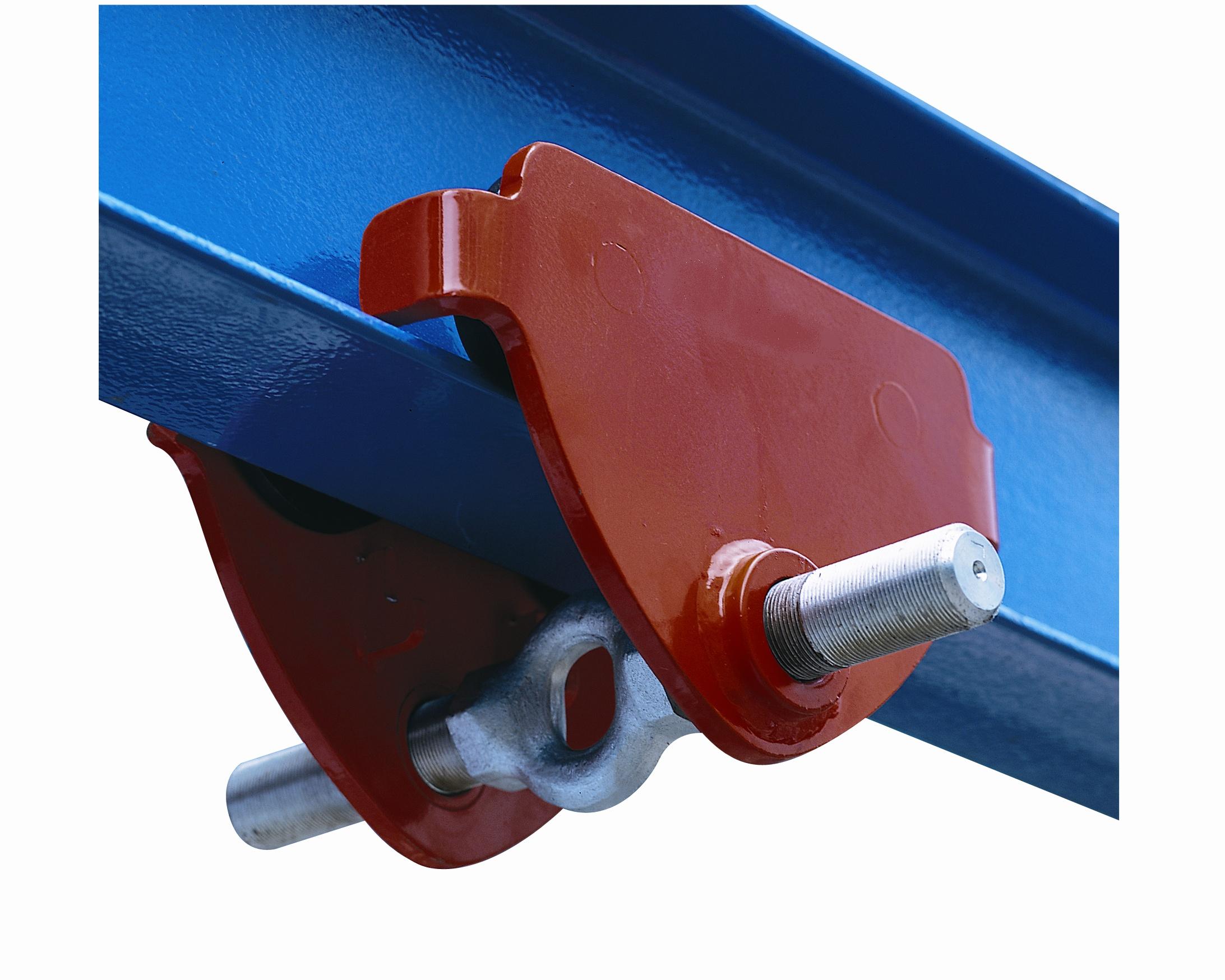

Screw Type Push Travel Trolleys PT Series

Product Specification

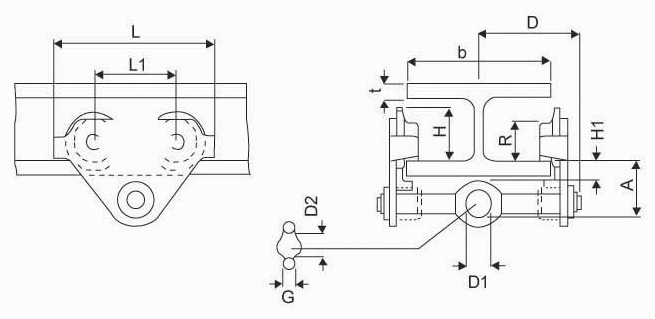

Model	Capacity (kg)	Beam Flange Width b(mm)	Beam Flange Thickness t(mm)	A	G	D1	D2	H	H1	L	L1	R	D	Net Weight (kg)
PT05-A	500	50-220	25	81.5	12	25	30	67	39.5	199	100	55	140	5.0
PT05-B	500	160-300	40	92	16	25	30	71.5	45.5	260	130	60	187	10.6
PT10-A	1000	50-220	25	96	16	30	36	81.5	44	246	120	68	151	9.0
PT10-B	1000	160-300	40	97.5	17	30	35	71.5	45.5	260	130	60	187	12
PT20-A	2000	66-220	25	102	20	40	48	94	34	276	132	80	157	15
PT20-B	2000	160-300	40	113.5	22	40	47	95.5	45.5	310	150	80	189.5	19.3
PT30-A	3000	74-220	25	128	24	46	58	115.5	46	332	155	100	164	24
PT30-B	3000	160-300	40	129	26	48	58	131	45	390	180	112	191.5	35.8
PT50-A	5000	90-220	25	133.5	28	52	65	127	40.5	377	168	110	174	36
PT50-B	5000	180-300	40	147.5	33	60	70	142.5	45	450	209	125	191.5	52.2
