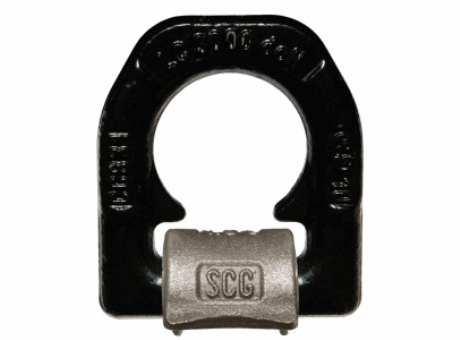

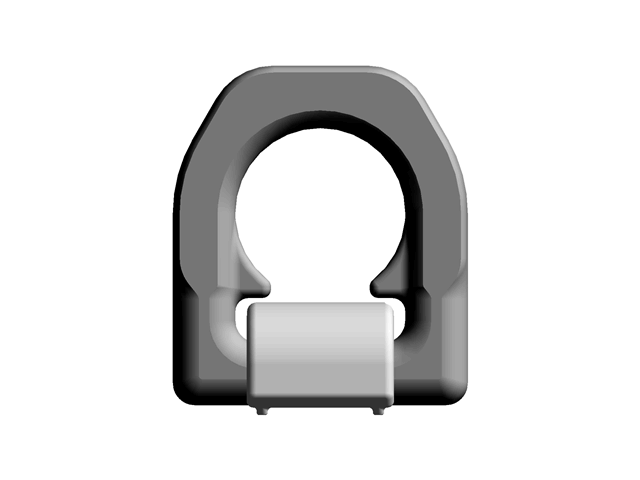

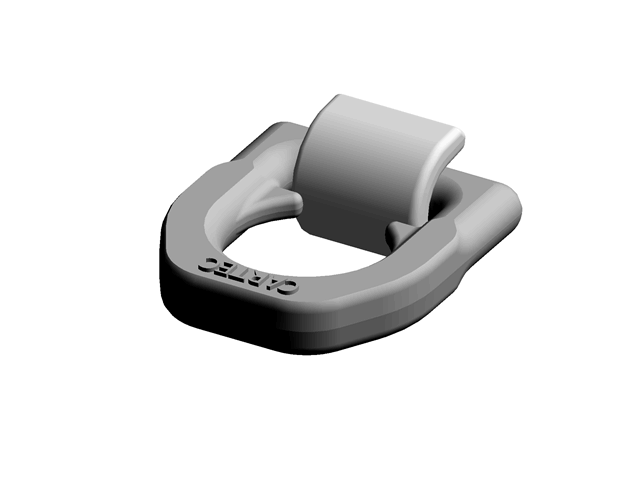

Lashing Ring Weld-on Type Single Base

Product Specification

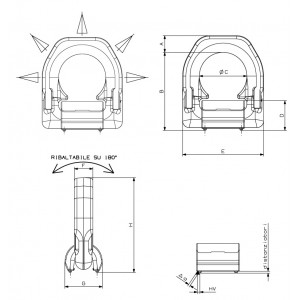

Item Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	Weight (Kg)	Capacity LC (t)	Welding thickness (HV + ∆a)	Code with spring
C831X03	14	65	38	25	66	16	31	79	0,39	3000	HV 5+3	no
C831X05	16	75	45	27	77	18	34,5	91	0,59	5000	HV 7+3	no
C831X08	18	84	51	32	87	20	40	102	0,87	8000	HV 8+3	no
C831X134	24	117	67,3	44	115	26	58,5	141	2,23	13400	HV 12+4	no
C831X20	31	126	67	55	129	28,5	70,5	157	3,33	20000	HV 16+4	no
C831X32	45	174	100	69	190	42	87	219	9,28	32000	HV 25+6	no
C831X03M	14	65	38	25	66	16	31	79	0,39	3000	HV 5+3	yes
C831X05M	16	75	45	27	77	18	34,5	91	0,59	5000	HV 7+3	yes
C831X08M	18	84	51	32	87	20	40	102	0,87	8000	HV 8+3	yes
C831X134M	24	117	67,3	44	115	26	58,5	141	2,23	13400	HV 12+4	yes
C831X20M	31	126	67	55	129	28,5	70,5	157	3,33	20000	HV 16+4	yes
C831X32M	45	174	100	69	190	42	87	219	9,28	32000	HV 25+6	yes
