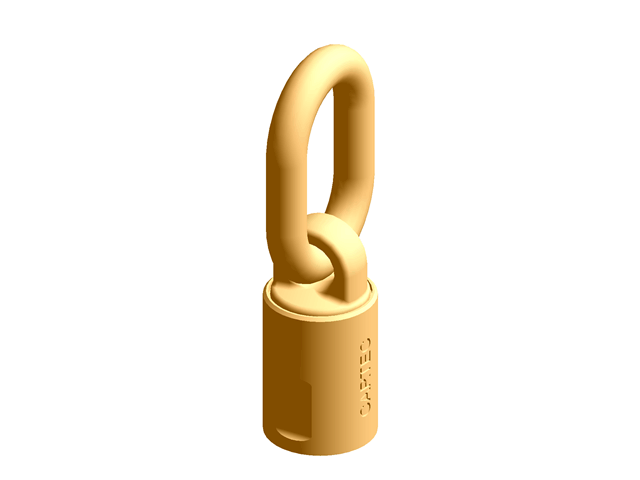

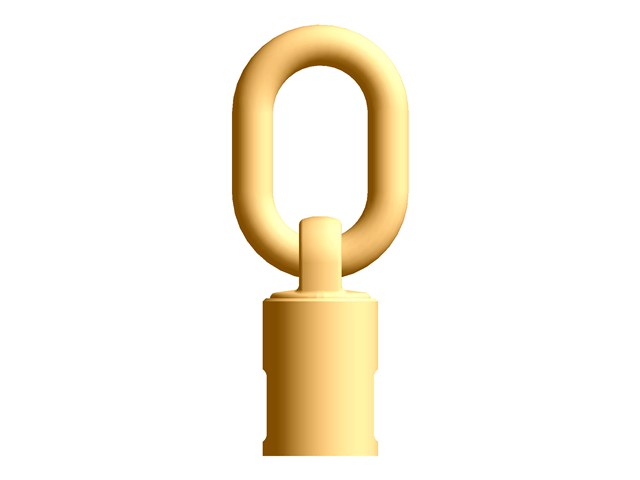

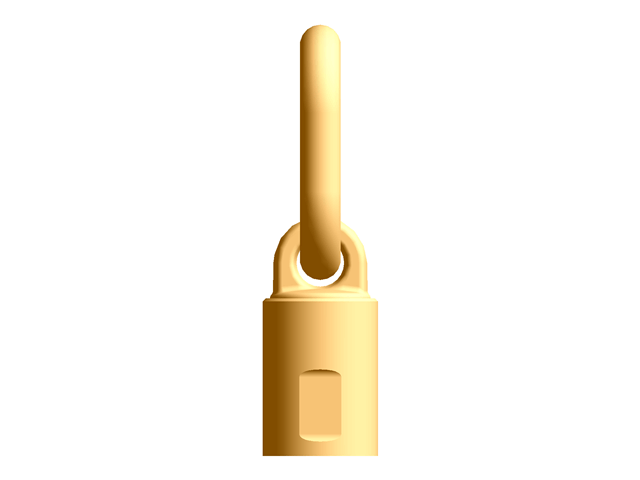

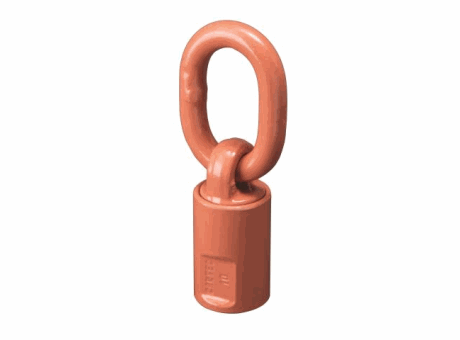

Back to Swivel/Rotating Eyebolts Rotating Eyebolt Weld-on Type With Ring
Made in Italy

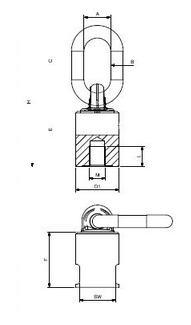

| Item Number | M x L (mm) | A (mm) | B (mm) | C (mm) | D1 (mm) | E (mm) | F (mm) | H (mm) | SW (mm) | Weight (Kg) | W.L.L. (t) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C816X0051215 | M12x15 | 30 | 13 | 47 | 36,5 | 67 | 50 | 124 | 34 | 0,61 | 0,5 |
| C816X0101620 | M16x20 | 30 | 13 | 47 | 38 | 76 | 57 | 131 | 34 | 0,68 | 1 |
| C816X0172025 | M20x25 | 34 | 16 | 58 | 55 | 93 | 70 | 164 | 46 | 1,65 | 1,7 |
| C816X0212430 | M24x30 | 40 | 18 | 72 | 58 | 107 | 81 | 193 | 50 | 2,17 | 2,1 |
| C816X0323040 | M30x40 | 45 | 22 | 65 | 75 | 126 | 94 | 211 | 65 | 4,29 | 3,2 |
| C816X0503645 | M36x45 | 50 | 23 | 92 | 84 | 145 | 109,5 | 260 | 75 | 6,22 | 5 |
