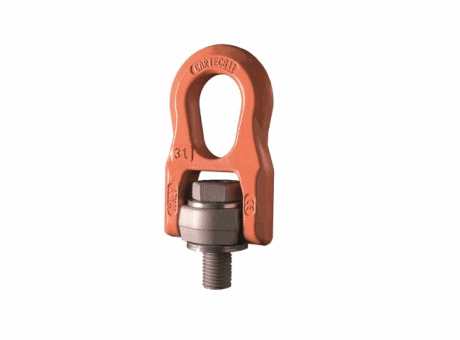

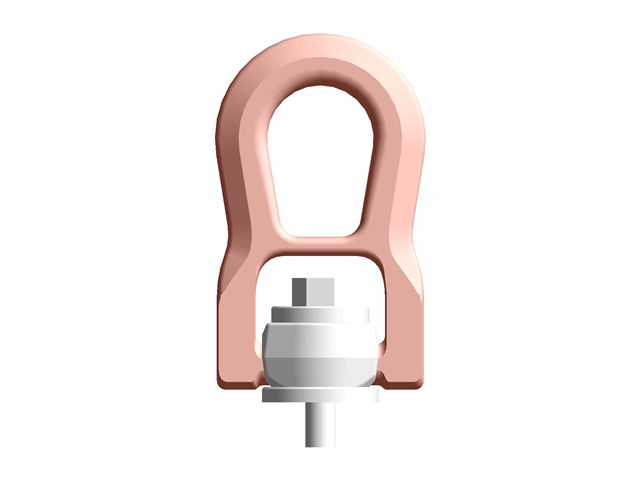

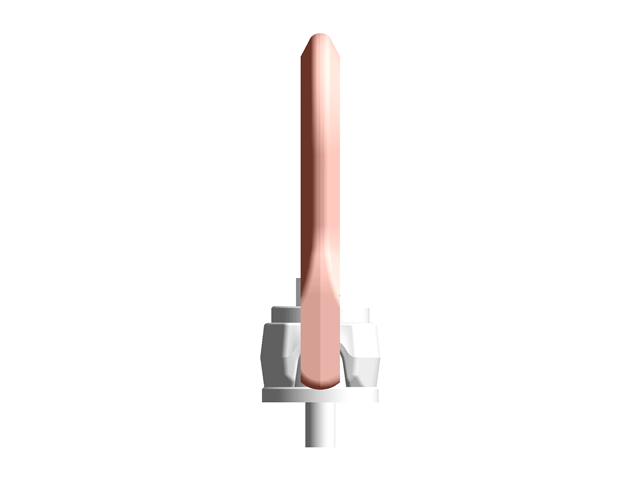

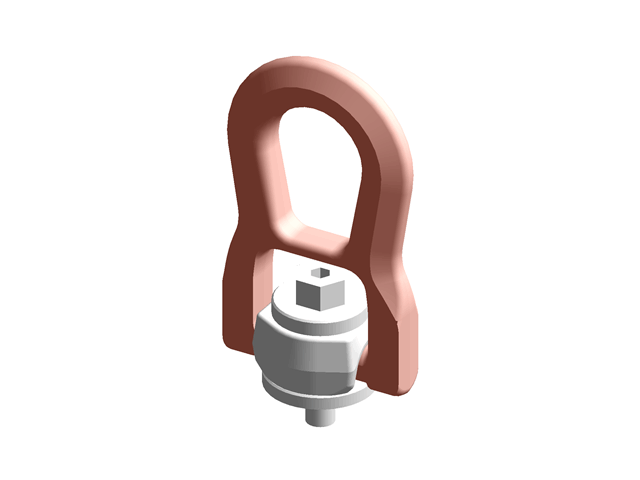

Back to Swivel/Rotating Eyebolts Heavy Lift Swivel Hoist Ring
Made in Italy

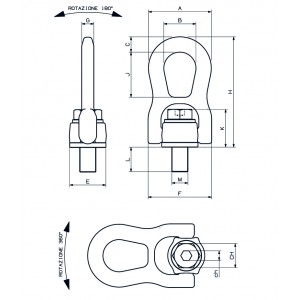

| Item Number | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | CH (mm) | Weight (Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C811X08 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 33,5 | 12 | 13 | 0,375 |
| C811X10 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 33,5 | 15 | 17 | 0,375 |
| C811X12 | 56 | 28 | 14 | 30 | 55 | 11 | 99 | 40 | 33,5 | 18 | 19 | 0,375 |
| C811X14 | 74,5 | 38 | 18 | 47 | 78 | 17 | 135,5 | 55 | 46 | 21 | 22 | 1,3 |
| C811X16 | 74,5 | 38 | 18 | 47 | 78 | 17 | 135,5 | 55 | 46,5 | 25 | 24 | 1,3 |
| C811X18 | 74,5 | 38 | 18 | 47 | 78 | 17 | 135,5 | 55 | 47 | 27 | 27 | 1,3 |
| C811X20 | 74,5 | 38 | 18 | 47 | 78 | 17 | 135,5 | 55 | 48 | 30 | 30 | 1,3 |
| C811X22 | 106 | 56 | 25 | 62 | 114,5 | 22 | 198,5 | 84 | 63,5 | 33 | 32 | 4 |
| C811X24 | 106 | 56 | 25 | 62 | 114,5 | 22 | 198,5 | 84 | 64,5 | 36 | 36 | 4 |
| C811X27 | 106 | 56 | 25 | 62 | 114,5 | 22 | 198,5 | 84 | 66,5 | 40 | 41 | 4 |
| C811X30 | 106 | 56 | 25 | 62 | 114,5 | 22 | 198,5 | 84 | 68 | 45 | 46 | 4 |
